Products

Transformers

25 MVA, 110/33kV Power Transformer installed at
TNEB, Coimbatore

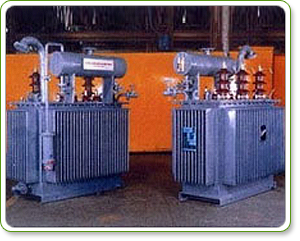

Compact Distribution transformers for export 315 kVA, 11000/433 V

31.5 MVA, 220 kV Power Transformer a/c Kalyani Ferrous, Hospet

16 MVA, 110 kV Generator Transformer at Maniyar Hydro Electric Power Station

7.5 MVA, 110 kV Power Transformer at M/s Madras Cements

Standards

Kirloskar Transformers are designed and tested to the following standards :

• Distribution and Power Transformers : IS : 2026, BS : 171 & IEC : 76
• Converter Transformers : IS : 4540, IEC : 146 & IEEE : 444
• Furnace Transformers : IS : 2026
• System Earthing Transformers : IS : 3150 & BS : 4944

The company is capable of manufacturing transformers to any other standards as per customers / consultants requirement.

Standards

• Distribution Transformers : 160 kVA to 2500 kVA, upto 33 kV class
• Converter Transformers : IS : 4540, IEC : 146 & IEEE : 444
• Power Transformers : 2500 kVA to 50000 kVA, upto 220 kV class

Standards

• Furnace Transformers : Upto 25000 kVA, 66 kV class
• Converter Transformers : Upto 20000 kVA, 33 kV class
• HV Power Frequency : Upto 1200 kV, 1200 kVA Testing Transformers
• Short Circuit Testing Transformers : Upto 100 kA for 1 second.
• Cast Resin Transformers : Upto 10000 kVA, 33 kV class
• Earthing Transformers / : For system upto 33 kV class Neutral Grounding Transformers
• Flameproof Dry Type Mining : 200 kVA to 500 kVA, upto 6.6 kV class Transformers/Transwitch Units
